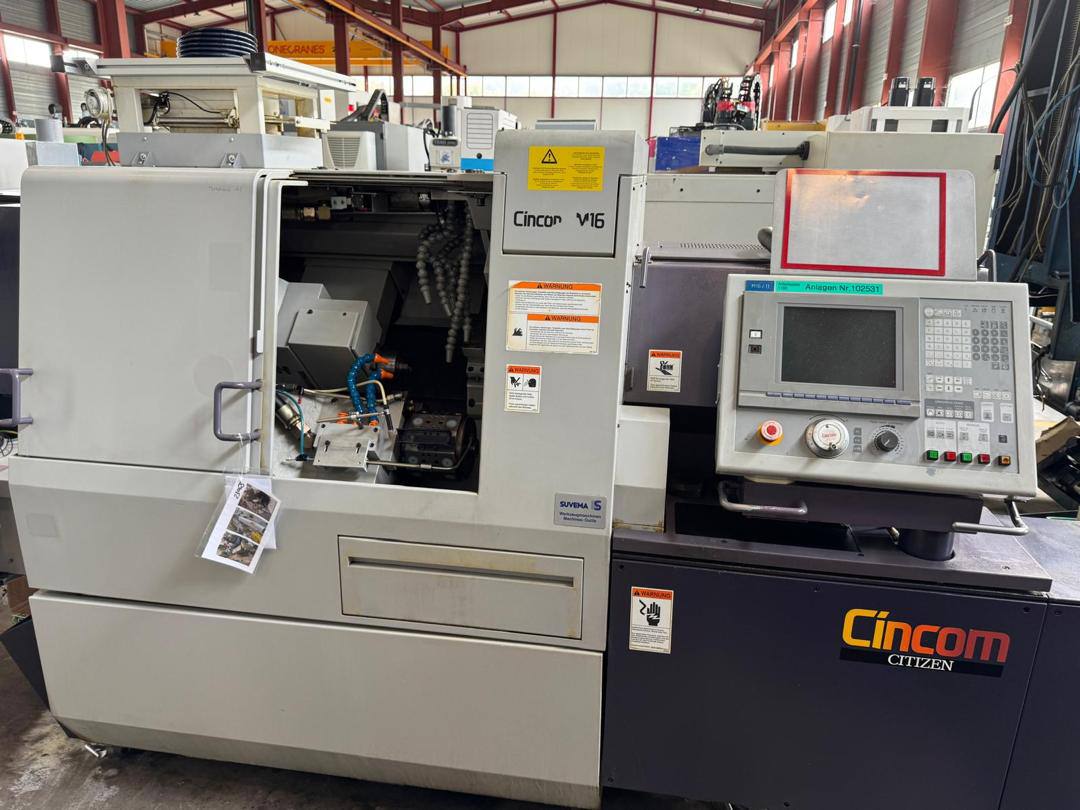

CINCOM Lathe Machine, CITIZEN M-16 Model

The CINCOM M-16 Sliding Head Lathe is one of the advanced and widely used machines in the Swiss-type CNC machinery category, produced by the Japanese company Citizen Machinery. This machine, utilizing sliding headstock technology and a dual main spindle structure with three tool posts, allows for precise and simultaneous turning operations on small and complex parts. Notable features of this model include a high spindle speed (up to 12,000 RPM), high accuracy of the C-axis (0.001 degrees), a bar loading capacity of up to 16mm, and the ability to install both live and static tools.

Attributes:
Introduction

Industries and Applications:

The CITIZEN M-16 Sliding Head Lathe is widely used in various industries that require the production of precise and complex parts. This machine is especially prevalent in the automotive, electronics, medical, tooling, and production of small and intricate parts such as screws, nuts, shafts, electronic connectors, and watchmaking components. The ability to perform turning, drilling, threading, and high-precision surface finishing operations makes it an ideal choice for producing parts with tight tolerances.

Advantages of Purchase:

Purchasing the CITIZEN M-16 Sliding Head Lathe offers numerous benefits for manufacturers. With its dual main spindle structure and three tool posts, this machine allows for simultaneous turning operations, which increases productivity and reduces production time. Additionally, the ability to install both live and static tools provides great flexibility in performing various machining operations. The high spindle speed and the high accuracy of the C-axis also ensure the production of high-quality parts with precise tolerances.

Services and Support:

In addition to producing high-quality machines, CINCOM offers technical and educational support services. These services include machine installation and setup, operator training, periodic maintenance, and spare parts supply. The extensive global network of after-sales services and technical support provides customers with peace of mind, ensuring longer machine life and reducing operational costs.

Specification:
در این قسمت می توانید مشخصات سیستم مربوطه را مشاهده نمائید.
In this section, you can see the specifications of the relevant system.
نمای کلی
مدل:
CITIZEN M-16
گزینه های بیشتر

Maximum machining diameter 16mm Dia.

Maximum machining length 200mm/chuck

Maximum drilling diameter for main spindle 10mm Dia.

Maximum front tapping diameter(tap, die) M8

Main Spindle through-hole diameter 20mm Dia.

Spindle speed 12,000min-1

Maximum chuck diameter of back spindle 16mm Dia.

Maximum protrusion length of the back spindle workpiece 125mm

Maximum drilling diameter in back machining process 8mm Dia.

Maximum tapping diameter in back machining process M6

Back spindle speed 12,000min-1

Gang tool rotary tool maximum drilling diameter 5mm Dia.

Gang tool rotary tool maximum tapping diameter M5

Spindle speed of the gang rotary tool 8,000min-1

Maximum drilling diameter for turret rotary tool 5mm Dia.

Maximum tapping diameter for turret rotary tool M5

Spindle speed of the gang rotary tool 8,000min-1

Maximum drilling diameter for back rotary tool 5mm Dia.

Maximum tapping diameter for back rotary tool M5

Spindle speed of the back rotary tool 8,000min-1

Number of tools to be mounted 36+α

Turning tool 10mm Sq.

Sleeve 19.05mm Dia.

X1 axis 32m/min

X2 axis 16m/min

X3 axis 32m/min

Y1 axis 32m/min

Y2 axis 8m/min

Y3 axis 32m/min

Z1 axis 32m/min

Z2 axis 32m/min

Z3 axis 32m/min

For spindle drive 2.2/3.7kW

For back spindle drive 0.75/1.5kW

For tool spindle drive(gang tool post) 0.69kW

For tool spindle drive(turret) 0.69kW

for back Tool spindle drive 0.75kW

For cutting coolant oil 0.4kW

Rated power consumption 7.9kVA

Load operation average power 5.4kVA

Center height 1,150mm

Weight 2,950kg
